traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Applicable Industries: Garment Shops, Manufacturing Plant, Textile industry

Showroom Location: Turkey, Viet Nam, Indonesia, Thailand, Bangladesh

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Motor

Condition: New

Type: Shuttleless Loom

Application: For Elastic and non-elastic, elastic non-elastic webbing manufacturer

Production Capacity: 300sets / Month

Dimension(L*W*H): 1.5m*0.98m*2.6m

Weight: 850 KG

Power: 2.2KW, 380V/220V

Warranty: 12 months

Key Selling Points: Automatic

Export Markets: Southeast Asia, the Middle East, Europe and America

Reed Width: 27mm

Speed: Designed Maximum 1200 RPM

Number of Hooks: 192A-240A

Size: 1.5m*0.98m*2.6m

Commodity Name: High Speed Needle Loom

Informations de base

Conditions de paiement et expédition

Packaging Details: each loom : Bubble pack + wellpappe + stretch films+ wood case

Supply Ability: 300 Set/Sets per Month

Description de produit

* The world's top 500 appointed manufacturer, specializes in needle loom for more than 20 years.

Product Paramenters

Model	2/110	4/65	6/50	8/30	12/15	8/30-2	12/18-2
Length of frame	550MM
Number of tapes	2	4	6	8	12	16	24
Width of reed	110	65	50	30	15	30	18
Maximum of tapes	100	63	48	28	13	28	16
Number of frame	16	16	16	16	16	16	16
Power/Voltage	1.1KW/380V
Circulation	1:8/16-48
Speed	800-1500rpm

Main Features

1.It is small in size and good-looking in appearance.
2. The principal axis is electromagnetic braking. It is easy-to-use and sensitive to start and stop, and not cause any useless tapes.
3. The single iron frame being divided on two sides and oriented in the middle, it can change to various flower shapes and different kinds of tapes.
4. It is featured by double weft and double hook and can weave every complex ribbon and double Z-type ribbon.
5.The advanced automatic weft feeding device ensures fine-tuning of weft feeding when non-stop of the machine.
6. The cam is characterized by its novel profile, no making too much noise and its high-quality lock and.
7. The number of lines of strips can be changed quickly and efficiently. Motor power is 1.1KW
8. The coiling setting is small in size and easy-to-use, and the coiling tape setting will stop automatically.

Product Description

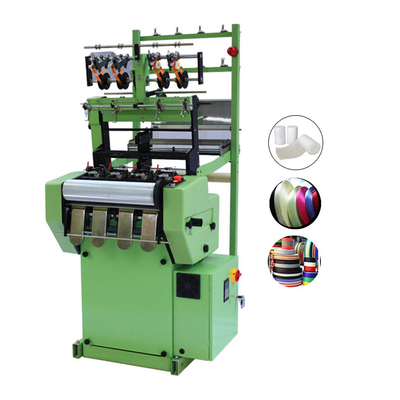

This is the shuttleless loom, this machine is to produce elastic belts, etc., the structure is the same as Muller's, over 95% of spare parts can interchange with Muller.

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of the machine, in order to improve the speed, to compare with another brand, the output is 15% higher than others.

Video link
https://youtu.be/80VmuYpsSWg

Related Products

Company Profile

FAQ

Q1:Are you a factory or trading company?
A1:We are a factory with our own trading department.

Q2:Where is your factory?
A2:Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our
factory.

Q3:How does your factory do regarding quality control?
A3:Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international
quality system certification.

Q4:How does your service oversea?
A4:We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the
machine for 1 year.And engineers will provide technical support.

Q5:Can you make some change for me for my own design?
A5:Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q6:How long is the warranty period?
A6:12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
