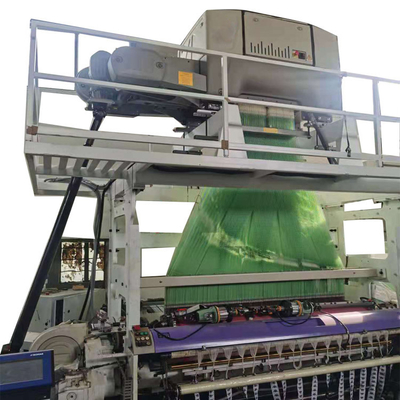

Weaving Loom Machine China Textile Woven Labels Woven Label Loom With New Jacquard Head Label Loom Machine

1 Piece
MOQ
Weaving Loom Machine China Textile Woven Labels Woven Label Loom With New Jacquard Head Label Loom Machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Warranty: 1.5 years
Applicable Industries: weaving loom, label loom machine, woven label loom, label loom
Weight (KG): 4800
Video outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Use: label loom machine
Type: label loom
Quality: High-quality
Material: Steel
jacquard head: new
Service: Online support
After Warranty Service: Spare parts
MOQ: 1 Set
Name: label loom machine
Keyword: label loom machine
Usage: woven label loom/woven labels
Machine Type: woven labels for clothing
Informations de base
Conditions de paiement et expédition
Packaging Details: wooden case
Supply Ability: 10 Set/Sets per Month
Description de produit
Products Description
name
label loom machine
place of production
made in china
warranty
one year
quality
high quality
model
label loom / recondition label loom
loom type
woven label machine （Chinese 501 loom with Chinese head）
loom width
190cm
loom RPM
450 to 480
woven label machine
1.New harness set
4.New control box (Made in China)
3.New cutting system (Made in China)
More and more label factory boss likes this kind loom as it's capacity highy and price cheaper.
We suggest you to visit our factory to have some knowledge when you come to Canton fair this time.
woven label machine
Base loom
--Loom : Chinese 501 loom
--Speed: 450rpm~ 480rpm
--Loom Width:1900mm
--Cycel numbers:8 repeats for taffeta (1 repeats=20cm)
--Weft density adjustment:adjust in the range between 5 to 200picks/cm
--Take-up:electronic take-up
--Let-off:Microprocessor control electronic let-off device with tension device
--Drive:Direct drive by one main super motor(Hi drive systerm)
--Weft tension:Double-twist electronic weft storage device adjustment
--Weft searching system:Electronic automatic detecting weft finder
--Weft selector:8 color electronic controlled color selector
--Beam diameter:800 mm
--Cloth roller diameter:600mm (Max)
--Main motor Power: 8kw (approx)

Jacquard
--Model:Chinese jacquard
--Hooks:1408 hooks
--Control System:chinese control system
--Power:0.8KW
--Weight:800KG
--Jacquard support frame:Using double high tensile steel plate superstructure design,easy access with jacquard and high stability
with anti-vibration character.

Harness kit
--Harness cord:New made in china
--Harness Board:Ooriginal imported Germany Harness board
--Heald:Italy Imported Heald

Thermal Cutting System
--Contains: cutting support device, tool holder assembly (including cutter)
--Contains: ironing fixture and ironing board, air compressor purchased by customers

Thermoforming/Ironing System
--Upper forming:Tailor-made full-width temple,automatically adjust the temperature
--Lower ironing board:Specialized ironing board with excellent finishing effect,reduce the possibility of fabric over shinning

Technical Specification
--Electricity: 380V three phase
--Dimension: Above 440cm W, 250cm L,390cm H
--Weight:About 6500kg(total)
Product packaging
Certifications
Trade shows
Company Profile

Goodfore Tex Machinery Co., Ltd. is a rising high-and-new technology enterprise. We are engaged in studying and producing spare
parts of imported jacquard,label and carpet machines.
Our main products are as harness set,slolenoid,jacquard module, pulley, steel hook, kinds breadboards,display,gripper,slitter and
etc.

They are widely applied in jacquard /rapier /label /air-jet machines.Our complete harness set
is applicated for different brands jacquard machine.
We are devoted to absolute sincerity cooperation and determined to make progress
FAQ
Are you a factory or trading company ?
yes ,we are trading company and we also have own factory
Where is your main market ?
12years ,our main markets are in Asia ,Europe ,North America
Can I get free samples from your factory ?
Yes ,of couse ,we are honored to offer your samples under $10.however ,freight you pay
If products have some quality problem ,how would you deal with?
We will responsible for all the quality problem if this had happed .
Where is your factory located?How can I visit there ?
Our factory is located in Gaoli Auto Expo City ,Huishan Area ,Wuxi ,China ,You can fiy to Shang hai airport .
What is the delivery time of your products ?
Qualitys is pridrity ,we always attch great inportance to quality controlling from the very beginning to the very end .Our
factory has gained ISO991 certification
