Caractéristiques

Applicable Industries: Manufacturing Plant

Showroom Location: Viet Nam, Pakistan

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition: New, Running

Type: Water Jet Loom

Application: air jet

Production Capacity: 200m/day

Dimension(L*W*H): 230cm*210cm*180cm

Weight: 3.8 KG

Power: 3.5kw

Warranty: 1 Year

Key Selling Points: High Safety Level

Related product: Air jet Loom Spare Parts

Color: Picture

Voltage: 3phases

After Warranty Service: Field maintenance and repair service

Product name: High Speed Rapier Loom

Name: Elastic Tape Making Machine

Informations de base

Conditions de paiement et expédition

Packaging Details: export or accrding byer

Supply Ability: 600 Piece/Pieces per Month

Description de produit

Water Jet Loom used to make every kind of fabric from polyester, nylon yarm etc.
1. 4-16pcs of heddle frame
2. 450-700RPM

Water Jet Loom, Weaving Loom Machine, Weaving Machine

QINGDAO HUAZUN MACHINERY CO.,LTD BRAND NAME :EKA

RJW-851 Is draws up a memo the pump double to spurt the heavy pound jet loom

Product characteristic

RJW851Series heavy pound jet loomMainly uses in producingThe cross grain and the satin weave group weaving plants,Has the high velocity, High efficiency steady running ability

Has the good performance in the manufacture high-density cross grain and the Sateen weave fabric production

This aircraft may choose and match the mechanical Chu latitude system

Double spurts the electron,Three spurt the electron to choose the latitude system freely

The cam opens the mouth to install,The dobby opens the mouth to install

In the product organization's range of variation is broader

Major technique parameter

1. Aperture way: 4-8 Piece Heddle frame even aperture, 4-16 piece of heddle frame multi-arm aperture.

2. Guiding the weft into the warp: The high-pressured current of water guides the weft into the warp, Single spray nozzle, Double spray nozzle, Three spray nozzles.

3. Chu Wei: Machinery, Electron.

4. Delivers passes through: Half positive, Half negative -like delivers continuously passes through.

5. The volume takes: The continuous-type volume

Specifications

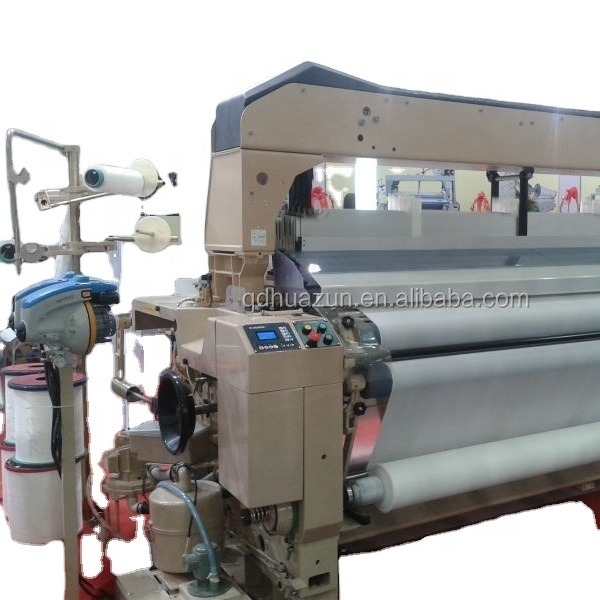

high speed heavy water jet loom:
1,Designed RPM:1200
2,ROJ feeder
3,ETU and ELO
4,Global service

1.Products details:
1). Name: RJW series of water jet loom
2). Introduction:Main products: Two series of RJW851 and RJW408, including more than 20 kinds of water-jet looms. To meet production of various fabric, the loom can be mounted with crank shedding device, cam shedding device, dobby shedding device, jacquard device and vertical double beam, meanwhile the loom can also be designed specially in terms of customer special requirements

3). Products specifications:

Specifications of RJW series of water jet loom
Type		RJW851	RJW408
Reed space		135, 150, 170, 190, 210, 230, 260, 280, 300, 320, 340, 360 (cm)
Useful reed space		Nominal R/S minus 2 cm to 50cm
Frame		Box frame type( Driving section is in an oil bath)
Driving	Brake	Direct stop mechanism by an electromagnetic brake
	Control	Push and touch button(Arrange, run, stop, forward inching, reverse inching, one step reverse)
	Motor	Rush start motor
	Motor capacity	1.5KW, 1.8KW, 2.2KW, 2.8KW, 3.2KW, 3.7KW, 4.5KW.
Beating		Crank beating
Let-off	System	Automatic mechanical and continuous let-off, or electronic let-off. One or vertical two roll
	Warp beam	800MMFlange,178MMbarrel
Take-up	System	Mechanical or electronic continuous take-up
	Pick density	Normal:5-60picks/cm,Special:3-70picks/cm
	Cloth wind-up diameter	420mm, 520mm, 600mm.
Shedding	Plain shedding	Crank shedding( heald frame number:2 to 6), 1/1 fabric
	Cam shedding	Cam shedding ( heald frame number:2-10),plain, twill, satin fabric
	Dobby shedding	Positive/negative Heald frame number:16(max),electronic and mechanical reading system, plain, twill, satin or complex design
	Jacquard	1408, 2688, 5120 lifting hooks, electronic jacquard device
Weft Insertion	Measuring & storage	300RDP type mechanical measuring turbo blower(single nozzle) or electronic weft feeder(1-4 nozzles)
	Pump	Type: M,L,H, single or double
	Piston of pump	32/17,32/18,32/20,36/22,36/24,36/26, 39/26,39/28,39/30,50/35,ceramic piston
	Nozzle needle	ST20/10, ST30/10, ST45/20, SD75/40.
	Weft filling	One, two, three, four nozzle
	Filling feeler	Electronic, optical, and self-control
Selvage		Twisting by star, planetary gears
Electrical Part	Made in China import	Main control board, AC contactor, transformer, NC interface, selvage break system ,waste yarn break system, overheating and overload protection
	Electronic meter	.Count and display: rotational speed, total yield, team yield, total efficiency, team efficiency Cloth length auto control, Stopping analysis and display
Other devices	A cloth roller, a weft density gear, a trashcan ,a set of nozzle needle

4).Company List

2. About our factory:
experience:We are the biggest manufacturer of all kinds textile machinery in China, specialized in the line of water jet loom and air jet loom more than ten years. We have exported our looms to many countries like Turkey, Egypt,, India, Malaysia and so on. With our competitive prices, experience, efficiency and reliability, we have won confidence and goodwill among our many business clients worldwide. Hereby, we would like to do our best to you with our best looms and service.

Service:The company attaches importance to after-sales service department all along, regard improving service quality and service level as the key of enterprise management to, take the product quality and service quality as the enterprise life, act for customer anxiously, consider about customer need, actively solving the problems in manufacturing process. Arranges skill training, technology communication, skill testing and ideological education for after-sales service staff regularly, and established and actualized strict management system and operating detailed rules. There are professional component warehouse and 8 special cars for after-sales service, which are more flexible and improving the efficiency of after sales service. The professional, excellent, prompt and active after-sales service team cleans up all customer trouble and win the customer’s appraise, at same time set up the advanced industrial benchmark.
