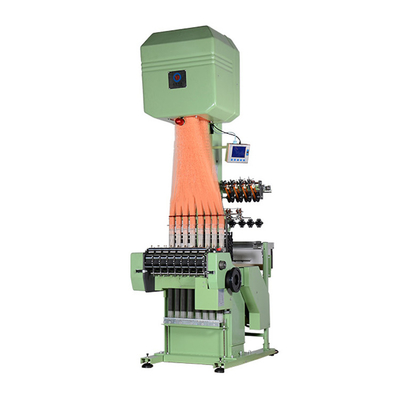

High standard elastic product jacquard velvet looms weaving machines+weaving loom supplies

1.0 Sets
MOQ
High standard elastic product jacquard velvet looms weaving machines+weaving loom supplies
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Garment Shops, Manufacturing Plant, Textile Industry
Showroom Location: Turkey, Viet Nam, Indonesia, Thailand, Bangladesh
Condition: New
Type: Jacquard Loom
Application: Produce Jacquard Elastic, To produce narrow fabrics straps/belt/webbing/tape and so on
Production Capacity: 300sets / Month
Dimension(L*W*H): 1.5m*0.98m*2.6m
Weight: 850KG
Power: 2.2KW, 380V/220V
Warranty: 1 Year
Key Selling Points: Automatic
After-sales Service Provided: Engineers available to service machinery overseas, Video technical support, Online support
Export Markets: Southeast Asia, the Middle East, Europe and America
Reed Width: 42mm
Speed: Designed Maximum 1200 RPM
Number of Hooks: 192A-384A
Size: 1.5m*0.98m*2.6m
Commodity Name: High Speed Needle Loom
Spare parts: Available to sale
After Warranty Service: Video technical support, Online support
Local Service Location: Turkey, Thailand
Certification: ISO9001 CE
Informations de base
Certification: ISO9001 CE
Conditions de paiement et expédition
Packaging Details: each loom : Bubble pack + wellpappe + stretch films+ wood case
Supply Ability: 300 Set/Sets per Month
Description de produit

High standard velvet looms weaving machines+weaving loom supplies

* The world's top 500 appointed manufacturer, specializes in needle loom for more than 20 years.

Product Description

This is jacquard loom to produce shoulder strap, belt, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller. please check the following specification.

TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.

TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS

TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.

Video link

https://youtu.be/80VmuYpsSWg

Parameters
Model TNF8/27A TNF6/42A TNF6/42B TNF4/66A
Number of hooks 192/240 192/240/320/384 384/448/480/512 192/240/320/384
Number of tapes 8 6 6 4
Width of reed 27 42 42 66
Maximum of tapes 25 40 40 62
Number of frame 12 12 12 12
Circulation 1:8/16-32 1:8/16-32 1:8/16-32 1:8/16-32
Speed 500-1200rpm 500-1200rpm 500-1200rpm 500-1200rpm
Model TNF4/66B TNF6/55A
Number of hooks 384/448/320/512/640/720 192
Number of tapes 4 6
Width of reed 66 27
Maximum of tapes 64 25
Number of frame 12 12
Circulation 1:8/16-32 1:8/16-32
Speed 500-1200rpm 500-1200rpm

Main Features
Main Features

1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine.

2.The integration solenoid valve setting is small in size and sensitive while working.

3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain.

4.The tension of warp is controlled automatically with the help of advanced technology

5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity.

6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking.

7.The woven flower shape is showed on windows directly and clearly.

8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens.

Company Information

Related Products

Logistics & Payment

FAQ

Q1:Are you a factory or trading company?

A1:We are a factory with our own trading department.

Q2:Where is your factory?

A2:Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.

Q3:How does your factory do regarding quality control?

A3:Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.

Q4:How does your service oversea?

A4:We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.

Q5:Can you make some change for me for my own design?

A5:Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q6:How long is the warranty period?

A6:12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
