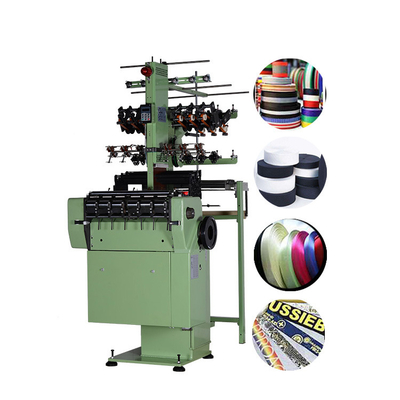

Aperçu /Produits/Machine à tisser du coton/Produce various elastic and non-elastic belts etc. New brand suttle less cotton weaving looms, high speed ribbon looms shuttleless weaving machine

Produce various elastic and non-elastic belts etc. New brand suttle less cotton weaving looms, high speed ribbon looms shuttleless weaving machine

1.0 Sets
MOQ
Produce various elastic and non-elastic belts etc. New brand suttle less cotton weaving looms, high speed ribbon looms shuttleless weaving machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Garment Shops, Manufacturing Plant, Textile industry
Showroom Location: Turkey, Viet Nam, Indonesia, Thailand, Bangladesh
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor
Condition: New
Type: Shuttleless Loom
Application: Produce varied elastic and non-elastic belts etc., To produce narrow fabrics straps/belt/webbing/tape and so on
Production Capacity: 300sets / Month
Dimension(L*W*H): 1.5m*0.98m*2.1m
Weight: 500KG
Power: 1.5KW, 380V/220V
Warranty: 1 Year
Key Selling Points: Automatic
After-sales Service Provided: Engineers available to service machinery overseas, Video technical support, Online support
Export Markets: Southeast Asia, the Middle East, Europe and America
Reed Width: 42&55mm
Speed: Designed Maximum 1700 RPM
Size: 1.5m*0.98m*2.1m
Commodity Name: High Speed Needle Loom
Spare parts: Available to sale
Machine type: Shuttleless Looms
After Warranty Service: Video technical support, Online support
Local Service Location: Turkey, Thailand
Certification: ISO9001 CE
Informations de base
Certification: ISO9001 CE
Conditions de paiement et expédition
Packaging Details: each loom : Bubble pack + wellpappe + stretch films+ wood case
Supply Ability: 300 Set/Sets per Month
Description de produit
Product Description
* The world's top 500 appointed manufacturer, specializes in needle loom for more than 20 years.
This is the shuttleless loom, this machine is to produce elastic belts, etc., the structure is the same as Muller's, over 95% of spare parts can interchange with Muller.

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of the machine, in order to improve the speed, to compare with another brand, the output is 15% higher than others.

Video link
https://youtu.be/80VmuYpsSWg
Main Features
1. The machine is suitable for making elastic or non elastic narrow fabrics, like underwear ribbon, shoose lace, shoulder strap, gifts lace.
2. The width of machine body is 780mm, and the capacity is 1.5 times that of the conventional model.
3. High speed, can be up to 1100-1300rpm.
4. Independent R & D and production of the machine, effectively control the quality of parts, so that the machine life is long, stable and reliable.
5 Stepless frequency conversion motor, easy to operation, saving labor, protecting the yarns.
6. The main brake system (patent no. ZL201320454993.0) is stable and reliable, can protect yarns.
Product Paramenters
Model
NF2/130
NF2/175
NF2/210
NF4/66
NF4/84
NF4/110
Number of tapes
2
2
2
4
4
4
Width of reed
130
175
210
66
84
110
Maximum of tapes
128
170
200
65
80
100
Number of frame
20
20
20
20
20
20
Speed
300-1200
rpm
200-800
rpm
200-500
rpm
600-1500
rpm
500-1200
rpm
500-1000
rpm
Model
NF6/42
NF6/66
NF6/80
NF8/27
NF8/42
NF8/55
Number of tapes
6
6
6
8
8
8
Width of reed
42
66
80
27
42
55
Maximum of tapes
40
65
78
25
40
53
Number of frame
20
20
20
20
20
20
Speed
800-1700
rpm
500-1200
rpm
500-1000
rpm
800-1700
rpm
500-1200
rpm
500-1000
rpm
Model
NF10/27
NF12/27
NF14/25
NF6/42-2
NF8/27-2
NF16/15
Number of tapes
10
12
14
12
16
16
Width of reed
27
27
25
42
27
15
Maximum of tapes
25
25
23
40
25
13
Number of frame
20
20
20
20
20
20
Speed
500-1200
rpm
500-1000
rpm
500-1000
rpm
500-1200
rpm
500-1200
rpm
500-1200
rpm
Related Products
Company Profile
FAQ
Q1:Are you a factory or trading company?
A1:We are a factory with our own trading department.

Q2:Where is your factory?
A2:Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our
factory.

Q3:How does your factory do regarding quality control?
A3:Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international
quality system certification.

Q4:How does your service oversea?
A4:We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the
machine for 1 year.And engineers will provide technical support.

Q5:Can you make some change for me for my own design?
A5:Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q6:How long is the warranty period?
A6:12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
