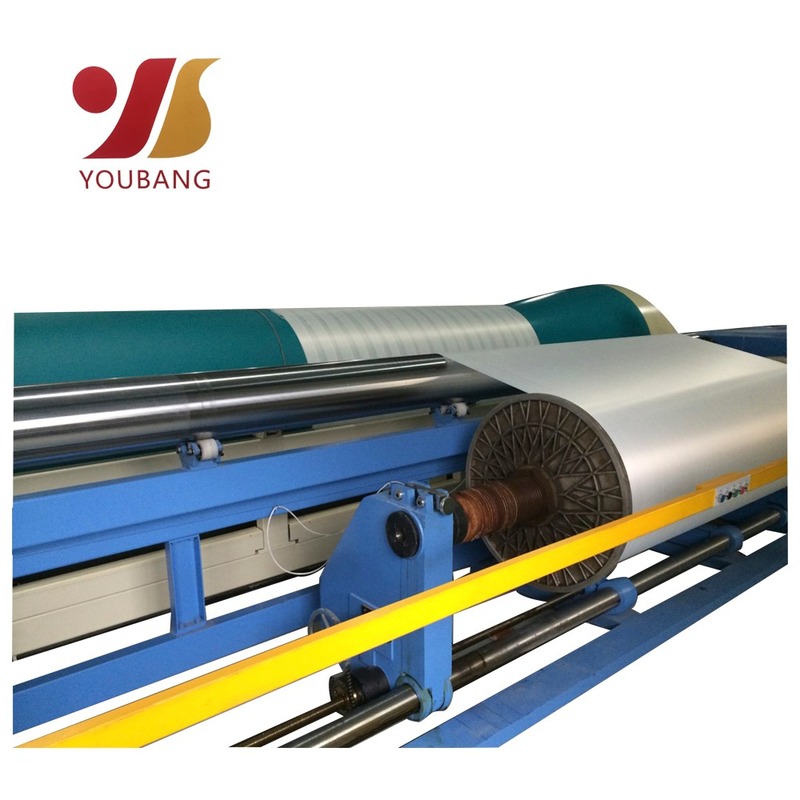

Garment shops sectional warping machine YBGA528 textile preparary weaving machines

1.0 Sets
MOQ
Garment shops sectional warping machine YBGA528 textile preparary weaving machines
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Garment Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor
Machine Type: Sectional warping machine
Product: machine
Material Capabilities: Yarn
Condition: New
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas, Video technical support, Online support
work width: 1.5-5.6m
Name: sectional warping machine
Capacity: 0-800m/min
Material: Yarns
After Warranty Service: Video technical support, Online support
Local Service Location: None
Certification: ISO9001:2000
Informations de base
Certification: ISO9001:2000
Conditions de paiement et expédition
Packaging Details: wooden pallet
Supply Ability: 15 Set/Sets per Month
Description de produit
Main Technical data of Model YBGA528 high speed sectional warping machine
1, Work width 2300~4200(mm)(Other on request)
2, Beam flange diameter ≤800(mm)
3, Warping speed 0~400(m/min)
4, Beaming speed 0~80(m/min)
5, Deviation of beaming tension ≤±2%(speed 300m/min)
6, Braking distance ≤3(m)(500m/min)
7, Drum diameter 1026mm
8, Cone length 1010mm
9, Cone angle 9°
10, Stripe traverse speed 0.001~9.99(mm/r)
11, Deviation of stripe traverse 0.20%
12, Deviation of stripe positioning Adjustable
13, Distance between section space reed and drum Automatic
14, Stripe location Automatic
15, Stripe widith 0.1~999.9(mm)(The length should not be longer than the guide roller)
16, Spindle space 300*250(mm)(wool yarn/cotton yarn)
290*290,220*220(mm)(chemical fiber)
17, Spindle number 392(wool yarn/cotton yarn)
480(chemical fiber)
18, Input voltage 3*380V±10%
19, Capacity 20KVA
20, Warping motor power 7.5KW
21, Beaming motor power 11KW
22, Strip traverse motor 0.75KW
23, Warping and beaming frame weight 5000(kg)
24, Creel weight 2500(kg)
This machine can be used for sectional warping worsted fabric,chemical fiber filament fabric,yarn dyed fabric,silk fabric,terry towel and special industrial cloth.And it can work with water-jet,air-jet,rapier,gripper and other shuttleless looms for preparation before weaving.

Established in 2002, our company is specialized in designing, manufacturing and marketing of warping machine for many years. We have two branch companies now.

Our main products are warping machines and spares, mesh apron for spining machine.

As for the details you can check with us. We are gold member of alibaba, you can search “Jiangyin city Youbang Textile Machinery” from alibaba then you can see us.


Our group has passed ISO9001.The products must meet the technical standards of 3C and CE.

All the products are certified by the Industry Administration Authority. We are enjoying an excellent reputation in the world market with perfect products and low price.

Welcome to make inquiry!

You are warmly welcome to visit our factory!
