Caractéristiques

Applicable Industries: Garment Shops, Manufacturing Plant, Textile industry

Showroom Location: Turkey, Viet Nam, Indonesia, Thailand, Bangladesh

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Motor

Condition: New

Type: Shuttleless Loom

Application: For Elastic and non-elastic, elastic non-elastic webbing manufacturer

Production Capacity: 300sets / Month

Dimension(L*W*H): 1.5m*0.98m*2.6m

Weight: 850KG

Power: 2.2KW, 380V/220V

Warranty: 1 Year, 12 months

Key Selling Points: Automatic

After-sales Service Provided: Engineers available to service machinery overseas, Video technical support, Online support

Reed Width: 27mm

Speed: Designed Maximum 1200 RPM

Number of Hooks: 192A-240A

Size: 1.5m*0.98m*2.6m

Commodity Name: High Speed Needle Loom

Spare parts: Available to sale

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: Turkey, Thailand

Certification: ISO9001 CE

Informations de base

Certification: ISO9001 CE

Conditions de paiement et expédition

Packaging Details: each loom : Bubble pack + wellpappe + stretch films+ wood case

Supply Ability: 300 Set/Sets per Month

Description de produit

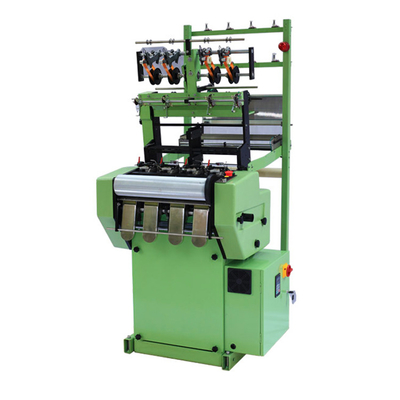

High Quality fiberglass ribbon fabric shuttleless needle loom,high speed fiberglass tape weaving machine

* The world's top 500 appointed manufacturer, specializes in needle loom for more than 20 years.

Product Description

This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.

Video link

https://youtu.be/80VmuYpsSWg

Model	2/110	4/65	6/50	8/30	12/15	8/30-2	12/18-2
Length of frame	550MM
Number of tapes	2	4	6	8	12	16	24
Width of reed	110	65	50	30	15	30	18
Maximum of tapes	100	63	48	28	13	28	16
Number of frame	16	16	16	16	16	16	16
Power/Voltage	1.1KW/380V
Circulation	1:8/16-48
Speed	800-1500rpm

Main Features

1.It is small in size and good-looking in appearance.

2.The principal axis is electromagnetic braking. It is easy-to-use and sensitive to start and stop, and not cause to any useless tapes.

3.The single iron frame being divided on two sides and oriented in the middle, it can change to various flower shape and different kinds of tapes.

4.It is featured by double weft and double hook and can weave every complex ribbon and double Z-type ribbon.

5.The advanced automatic weft feeding device ensures fine tuning of weft feeding when non-stop of machine.

6.The cam is characterized by its novel profile, no making too much noise and its high-quality lockrand.

7.The number of lines of strips can be changed quickly and efficiently.Motor power is 1.1KW

8.The coiling setting is small in size and easy-to-use, and the coiling tape setting will stop automatically.
