traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Condition: New

Type: Shuttle Loom

Application: Belt

Production Capacity: 98%-100%

Dimension(L*W*H): 3000*1100*1800mm

Weight: 500kg

Power: 1.1KW

Warranty: 1 Year

After-sales Service Provided: Online support, Engineers available to service machinery overseas

Certification: ISO9001 CE

Transportation Mode: By sea

Finished product: Belts/tapes/ribbon/webbings/braids and so on

Various application: safety-belt, shoe laces,cummerbund, underwear bandage,wrist band etc.

Informations de base

Certification: ISO9001 CE

Conditions de paiement et expédition

Packaging Details: standard wooden case packing

Supply Ability: 100 Set/Sets per Month

Description de produit

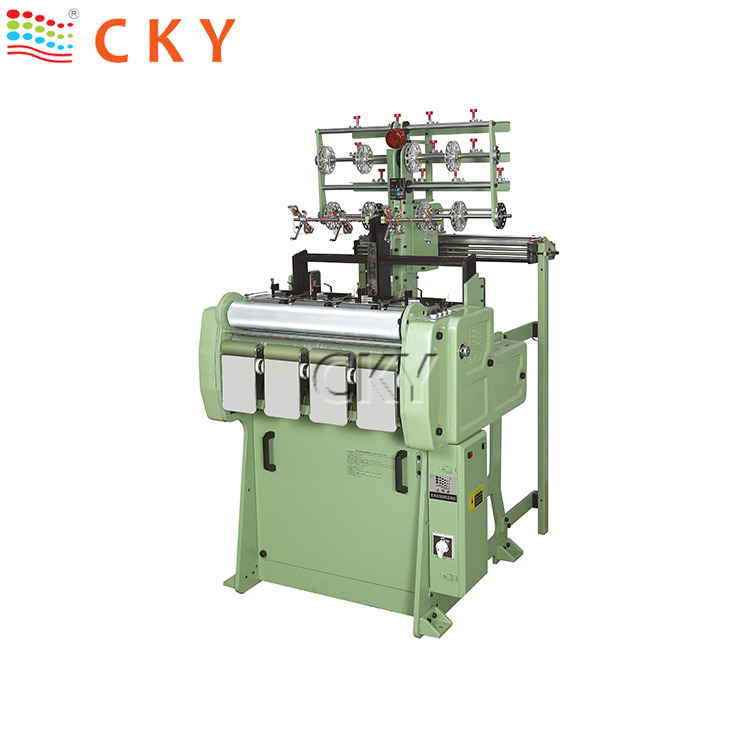

CKY4/110 High Speed Shuttleless Ribbon Weaving Machine

Product Description

Model	Tape Lines	Reed Width Max.(MM)	Weft Density (CM)	Pattern Chain Cycle	Heald Frame (PCS)	Moter (KW)	Speed R.P.M
CKY 2/110	2	110	3.5-36.7	8-48	12-16	1.1-1.5	800-1200
CKY 2/160	2	160
CKY 2/210	2	210
CKY 4/65	4	65
CKY 4/80	4	80
CKY 4/110	4	110
CKY 6/45	6	45
CKY 6/55	6	55
CKY 6/65	6	65
CKY 6/80	6	80
CKY 8/30	8	30
CKY 8/45	8	45
CKY 8/55	8	55
CKY 10/30	10	30
CKY 10/45	10	45
CKY 12/16	12	16
CKY 12/30	12	30
CKY 14/20	14	20
CKY 16/20	16	20

Features:

Used for the production of light narrow fabrics like ribbon,webbing,shoulder strap,elastic tape and some for special purpose;productive,fast and double layer output; The latest design makes the weaving angle more reasonable and operation more user-friendly.
