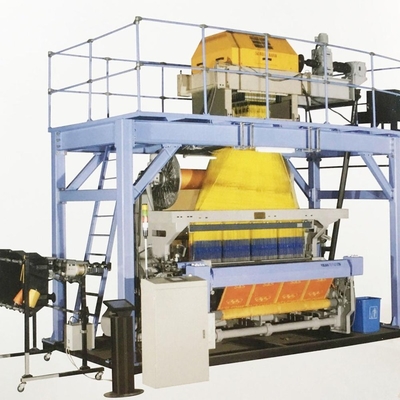

Terry Towel Rapier Loom TD737J Towel Rapier Loom Textile Machinery with Jacquard/Jacquard Device

1 Set
MOQ
Terry Towel Rapier Loom TD737J Towel Rapier Loom Textile Machinery with Jacquard/Jacquard Device
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Manufacturing Plant
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: PLC, Gearbox, Gear
Condition: New
Type: Rapier Loom
Application: Terry Towel Rapier Loom
Production Capacity: 99.99%
Dimension(L*W*H): 4500x2500x2600mm
Weight: 3100 KG
Power: 1.5KW, 2.2-2.6 KW
Warranty: 1 Year
Key Selling Points: Automatic
After-sales Service Provided: Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
Reed Width: 150cm,170cm,190cm,230cm,280cm,360cm
Machine color: As customer request
Beating: Six linkage beating up system
Machine Type: Towel weaving looms
Rotation Speed(RPM): 240RPM(78'')
Weft Selection: 6,8 colors
Shedding Mechanism: upper-placed electric
Overall Size: 4706x1936x2220(230cm/90'')
After Warranty Service: Online support
Local Service Location: None
Certification: ISO9001
Informations de base
Certification: ISO9001
Conditions de paiement et expédition
Packaging Details: nude packing or as customer's request
Description de produit
Products Description
Model
TD737J
Reed Width (cm)
180(74") 200(78") 230(90") 250(98") 280(110") 330(130")
Rotation Speed(RPM)
240RPM(78'')
Weft Selection
6,8 colors
Yarn Count
Cotton:6Ne-80Ne,Wool:10Ne-135Nm,Chemical Fabric:900D-70D
Dia. of Warp Beam
Terry 800mm or 600mm, ground 680mm or 600mm
Dia. Of Rolling-Up
600mm
Let-Off Type
Up positive electric let-off down;electric let-off
Terry Raising Type
Cam type movable reed terry raising
Height of Terry(mm)
Stepless adjustment from 2 to 12 times
Shedding Mechanism
Upper-placed electric
Number of Heddle Frame
16 pages
Weft Stop
Piezoelectric Ceramic Sensor Control Weft Stop
Warp Stop
2 rows electric warp stop
Color Selection
Electrical color selector 6 Color
Electric Control System
PLC
NUMBER OF HOOK
800/1408/2688/5476/15360
Power
2.2-2.6 KW
Weight
3200-3500KG
Overall Size
4706x1936x2220(230cm/90'')
Production process
Production categories
Company Profile
Our Advantages
Product packaging
FAQ
(1)Q: Why Choose Our Company? A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design. (2) Q: How's the after-sale service? A: We offer engineers available to service overseas under merchandiser's supervision and translation. (3) Q: Are you available for on-the-spot invitation? A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to. (4) Q: Is the price offered changeable? A: We offer reasonable price for every client, and the price is changeable according to purchasing amount. (5) Q: How about the quality? A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement. (6) Q: Are you a manufacturer or Trade Company? A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price. (7) Q: Product /Quality Guarantee and After Sale Service? A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us. (8) Q: One-stop Service: A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range. (9) Q: Certification? A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
