Caractéristiques

Applicable Industries: Manufacturing Plant

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Bearing, Gear

Condition: New

Type: Air Jet Loom

Application: Fabric making

Production Capacity: 95%-100%

Dimension(L*W*H): 1.4*1*1.8

Weight: 1.5 KG

Power: 2.2KW

Warranty: 1 Year

Key Selling Points: High Productivity

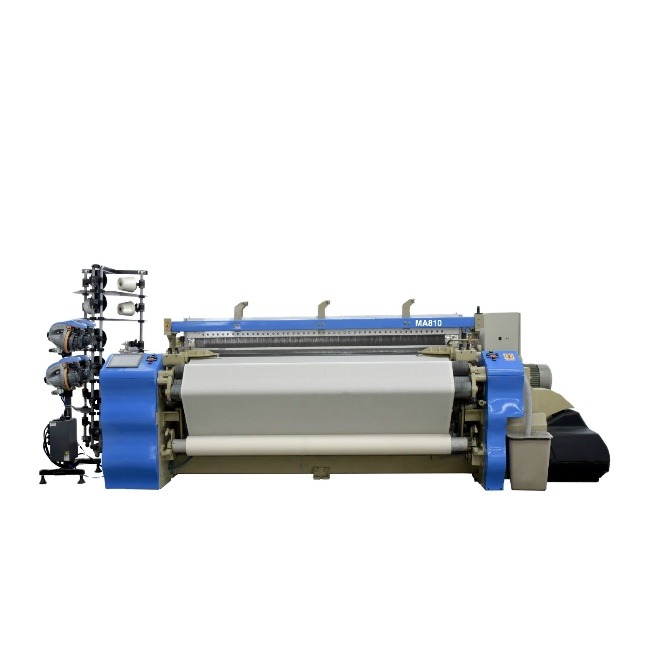

Commodity name: China high speed low price airjet loom

Reed width: 140~360cm

Shedding: Dobby Shedding

Machine type: High speed

Colors: 2~6 colors

Speed: 800-1200 RPM

Export Markets: India, Turkey, Russia, Uzbekistan, Indonesia, Egypt

Related product: MA710 Economic air jet loom

Function: Jeans, Denim,Bedding, Shirting, 100% cotton fabric

Capacity: 700 sets/month

Informations de base

Conditions de paiement et expédition

Packaging Details: Standard packing within containers for China high speed low price airjet loom

Supply Ability: 800 Set/Sets per Month

Description de produit

Specifications of MA9210 High Speed Air Jet Loom					Optional
Reed width	Nominal	150,170,190,210,230,250,280,340cm
Reed width		Effective	nominal:0--60cm(l 50-250cm) 0--80cm ( >280cm)
Working range		short yarn):nel00-ne2.5 filament):22dtex-1350dtex
Weft selection		1, 2, 4 or 6 colors
Motor	Start mode	Start motor at high speed
				Push-button start, stop, f/r slow move
				Push-button switch handed
		Power	2.8Kw, 3.0Kw, 3.8Kw, 4.5Kw
Weft insertion	Method	Main nozzle+swing nozzle+sub nozzle+abnormality lock	Weft brake
		Control	Import high-frequency solenoid valve,computer program contol
		Supporting spray solenoid-valve	Supporting spray solenoid valve integrated with flow cavity
		Measuring weft storage	Electric control loop separate weft storage	Ballooning prevention device
Beating	Beating-up motion	Double side tank oil-bath type four-bar beating-up motion,six-bar beating-up for 280cm and above
				Multi-sleysword solid beating-up warp and weft system
				Multi-supporting base, balance weight
Shedding		Crank type flat shedding
				Positive cam shedding at bottom
				Electric dobby shedding
				Electronic jacquard shedding	Double-warp beam
Let-off	Flange diameter	Electric servo continuous let-off
				Positive twin back beam
				800mm	1000mm
Take-up	Take up method	Electric servo continuous take-up
		Take up method	On loom take up diameter(Max dia:600mm)	Outside loom take up diameter(Max dia:1000mm)
		Temple	Upper
Selvedge		Leno yarn by planetary gear
Lubrication		For main driving parts: oil-bath type, centralized filling oil(grease)
Shutdown device	Weft breakage	Reflecting doule feeler device
		Warp breakage	Electric warp stop device
		Others	Selvedge, yarn end treatment, end-broken stop motion
		Shutdown display	Screen display, multi-functional shutdown display lights
Weft cutter		Mechanical cutter	Electric cutter
Electric control system		High-deficiency, large screen, vga color image display touch human-computer interface
