Caractéristiques

Condition: New

Type: Jacquard Loom

Application: belt, ag/luggage belt,underwear strap,shoelace,gift ribbon,garmen

Production Capacity: 98%-100%

Dimension(L*W*H): 3750*1100*2600mm

Weight: 800KG

Power: 1.5KW

Warranty: one year, one year

After-sales Service Provided: Online support, Engineers available to service machinery overseas

Certification: ISO9001 CE

Transportation: By sea

Finished Product: Ribbon,cotton belt,pp belt,plain elastic

Weft density: 3.5-36.7WEFT/CM

Speed: 800-1000RPM

Pattern chain cycle: 8-40

Informations de base

Certification: ISO9001 CE

Conditions de paiement et expédition

Packaging Details: standard wooden case packing

Supply Ability: 200 Set/Sets per Year

Description de produit

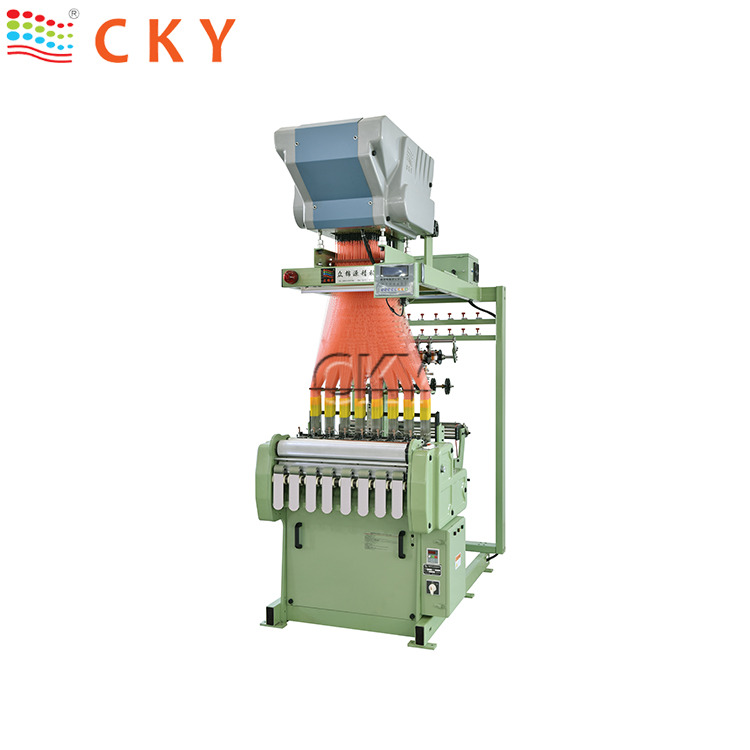

Automatic Machine Bonas Computerized Jacquard Needle Loom Machine

Product Description

Model	Tape Lines	Reed Width Max.(MM)	Jacquard Hooks Max.(N)	Weft Density (CM)	Pattern Chain Cycle	Heald Frame (PCS)	Moter (KW)	Speed R.P.M
CKY 2/110/640	2	110	640	3.5-36.7	8-40	6-8	1.5	800-1000
CKY 4/65/640	4	65	640	3.5-36.7	8-40	6-8	1.5	800-1000
CKY 4/80/640	4	80	640	3.5-36.7	8-40	6-8	1.5	800-1000
CKY 6/45/384	6	45	384	3.5-36.7	8-40	6-8	1.5	800-1000
CKY 6/55/560	6	55	560	3.5-36.7	8-40	6-8	1.5	800-1000
CKY 6/65/640	6	65	640	3.5-36.7	8-40	6-8	1.5	800-1000
CKY 8/30/240	8	30	240	3.5-36.7	8-40	6-8	1.5	800-1000
CKY 8/45/384	8	45	384	3.5-36.7	8-40	6-8	1.5	800-1000
CKY 10/30/240	10	30	240	3.5-36.7	8-40	6-8	1.5	800-1000

Features:

For the production of patterned elastic jacquard fabrics like underwear tape, pants band, lanyard, shoelace, ribbon; More suitable for weaving fine warp threads.

Advanced cam driven mechanism with smooth operation, low noise level and smooth reliable performance; original adjustable griffe arms make maintenance easier.

Adoption of modular electromagnetic valve and optical fiber transmission; More suitable for weaving fabrics with less tension warp; small in size and easy maintenance.

The machine body is made of all-in-one steel plate, which has improved the accuracy of the machine and makes it run more stable.

Open structure for weft feeding; optional weft fed by disc wheel or by belt pulley makes operation easier.
