Full Automatic Rapier Swatch Fabric Weaving Machine Cloth High Speed ​​Loom DW598

High Speed Rapier Loom DW598

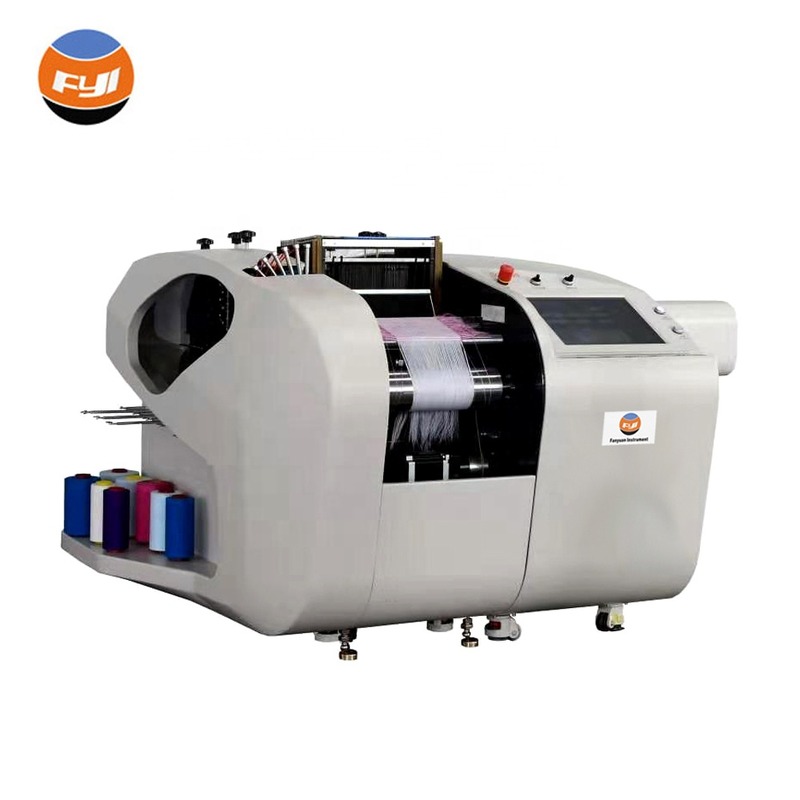

High speed rapier loom can swiftly and accurately measure small samples of textiles and is a new type machine .It is convenient for adjusting parameters, and the samples enjoy the same style as the manufactured products. The fabric weaving machine is applied to the weaving of test samples of cotton, wool, silk, flax, chemical fiber and blended textile.

Rapier Sample Loom is comprised of control part(computerized control platform) and mechanical part (loom). Control part is controlled by PLC and working frequency controller, key parts of mechanical part including pneumatic element, electric element and stepping motor etc. are imported with original package, thus ensuring stability and reliability of equipment operation. Gaiting length, shed shape and size of sample loom are proportionally contracted and enlarged with new type rapier loom to ensure that warp tension and extensibility of sample loom are in conformity with rapier loom, moreover, same adjustment mode of looming technical parameters as that of new type rapier loom is used in this sample loom, so quality of sample is controlled more precisely. Compared with traditional semi-automatic sampler, this sampler can improve sample efficiency, besides, it fully solves difference between sample and bulk order products and sample difficulty of fabric including multiple heald frame and double circulation etc. in the past.

Detailed Images :

With touch screen display .

Friendly design and easy to use .Customer can change 12,16 20 inch

3. Warp yarn breakage automatic stop:Laser induction detection(patent technology)
4. Weft yarn breakage automatic stop:Mechanical spring automatic stop
5. Warp yarn tension control:automatically electronic adjusting warp tension

Beating mode:cam beating controlled by servo motor
Weft insertion mode:servo motor driving and synchronous leading and inserting weft

Features of high speed rapier loom :

1 Consists of control part (computerized control platform) and mechanical part (loom);

2 Weft inserting with rigid rapier, suitable for 7s~100s cotton, terylene/cotton, chemical fibre and other fabrics;

3 Stepper motor driving let-off device, automatically adjust warp tension;

4 Imported pneumatic control element, can control 20pcs heald frame at most, easy to mount and dismount heald frame;

5 Heald frame adopts die drawing aluminium alloy profile, with hard oxidation wear-resisting treatment;

6Adjustable pneumatic controlled beating-up mechanism, large force and adjustable moment of force, suitable for fabrics of

high count and high density;

7 Electronic control take-up mechanism driving by imported stepper motor and reducer, 10~300pcs/inch of weft density.
