Caractéristiques

Applicable Industries: Manufacturing Plant

Showroom Location: Indonesia, Pakistan, India, Uzbekistan

Video outgoing-inspection: Not Available

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Gearbox

Condition: New

Type: Jacquard Loom

Application: scarf/shawl making

Weight: 1.5 KG

Power: 4-9 KW

Warranty: 1 Year

Key Selling Points: High-accuracy

After-sales Service Provided: Overseas service center available

Shedding: Electronic Jacquard

Certification: CE ISO

Informations de base

Certification: CE ISO

Conditions de paiement et expédition

Packaging Details: export standard wooden packing

Supply Ability: 50 Set/Sets per Month

Description de produit

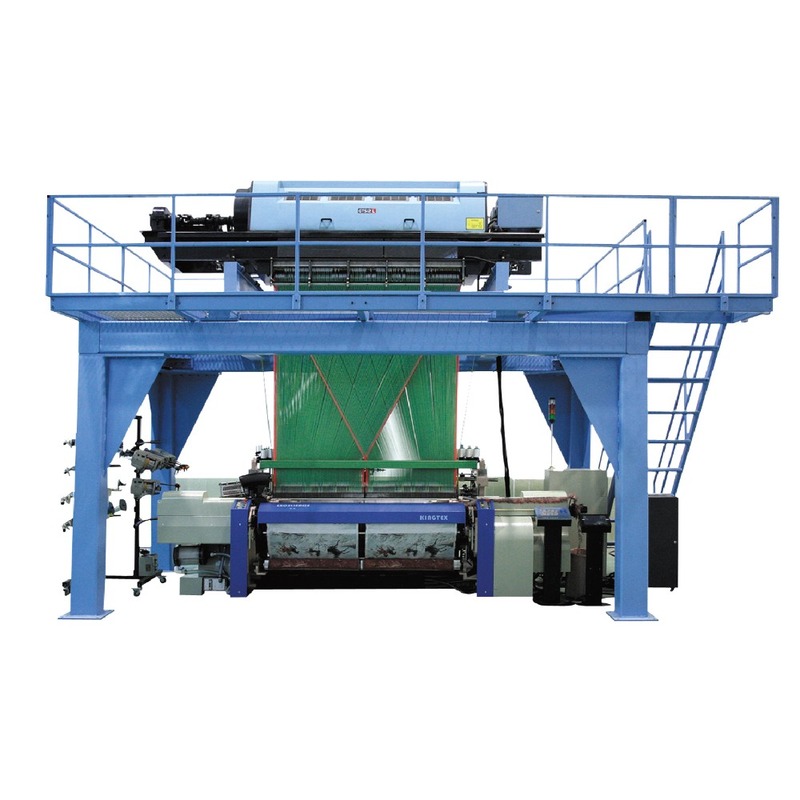

HYRL-1728 High Speed Shawl Making Machine

It is absorbed Erope machines technical, adopt cam beating up dobby, let off, take up are all electronic.

This loom adopts staubli electronic dobby, fully electronic let-off and take up system, suspension guide hook. Perfect electronic control, menu-type program and practical memory card. During the weaving, it has 8 weft densities and 8 settings of tension accordingly.

For the special loom and necktie jacquard loom, it is possible even to set a warping-stop function. This loom is much more versatile and flexible in use.

Main Specifications:

Reed width	190cm	210cm		230cm	280cm	360cm
Max. weft inseration rate (m/min)	530-685	588-714		644-782	650-875	750-1008
Speed (rpm)	500-550	500-550		480-530	450-500	400-450
Yarn range	Cotton		6NE—80NE, 10Nm—135Nm
	Wool		10Nm—135Nm
	Chemical Fiber		900D—70D
Shedding	electronical jacquard machine:1344 hooks,2688 hooks,3584 hooks,6144 hooks
Weft insertion form	Separate reeds positively driven by conjugate cams at both ends
Beating-up motion	Separate sley bars positively driven by close conjugate cams at both ends
Warp Let-off motion	Electronic let-off system was driven by seperate servo motor
Take-up	Electronic take-up system was driven by separate servo motor.
Weft selection	Electrical color choosing device; max.8 weft colors.
Diameter of warp beam	800mm or 1000mm
Warp stop	6 rows electric warp stop
Weft stop	With piezoelectric sensor control weft stop
Power consumption	4-9 KW

We can manufacture according to customer's requirement.
