Aperçu /Produits/Machine de métier à tisser de tissage/Garment Shops High Speed ​​Automated Elastic Jacquard Band Needle Loom

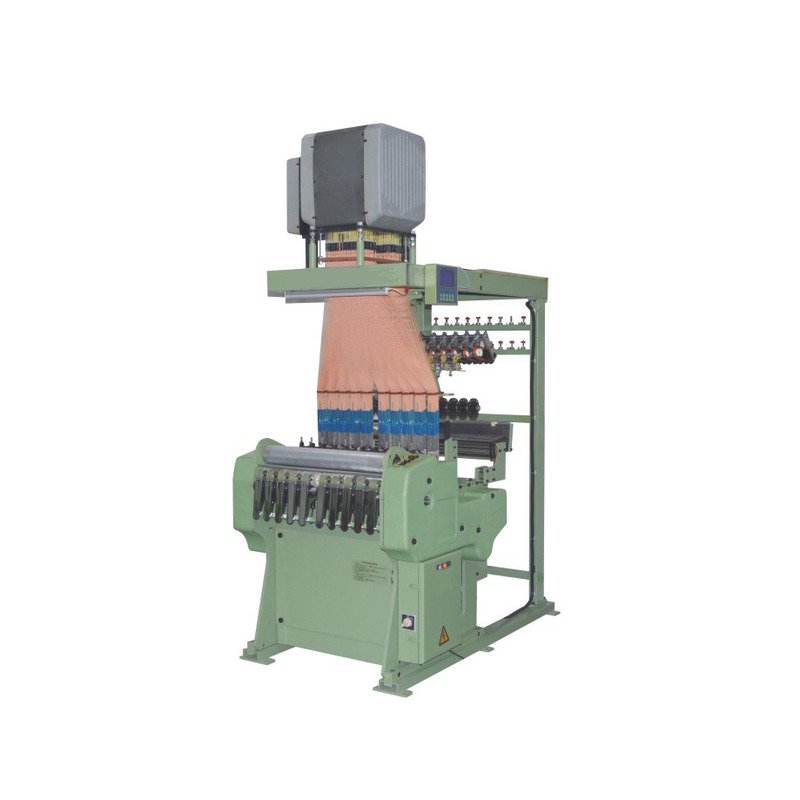

Garment Shops High Speed ​​Automated Elastic Jacquard Band Needle Loom

1 set
MOQ
$6,600.00(1 - 2 sets) $6,500.00(3 - 4 sets) $6,400.00(>=5 sets)
Prix
Garment Shops High Speed ​​Automated Elastic Jacquard Band Needle Loom
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Applicable Industries: Garment Shops, Manufacturing Plant
Showroom Location: Turkey, Viet Nam, Peru, Mexico, Morocco, Argentina, Bangladesh
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Bearing, Gearbox
Warranty: 1 Year
Power: 2.2KW
Dimension(L*W*H): 1.5m*0.98m*2.6m
Chain link repeat: 8-48
Certificate: CE
Key Selling Points: Automatic
Weight: 850KG
Speed: 750-1200
Type: Jacquard Loom
Reed width: 25
No. of Tapes: 10
After Warranty Service: Video technical support, Online support
Local Service Location: Turkey, Viet Nam, Peru, India, Mexico, Morocco, Colombia, Bangladesh, Ukraine, Uzbekistan
After-sales Service Provided: Free spare parts, Video technical support, Online support
Informations de base
Certification: CE
Conditions de paiement et expédition
Packaging Details: wooden box
Supply Ability: 1000 Set/Sets per Year
Description de produit
Product Description
Brand Name
Guangmei
Belt
10
Reed width
25
Frame
8
Chain link repeat
8-48
Speed
750-1200
Size
1.5m*0.98m*2.6m
Certificate
CE Certificate
Machine Features:
1. This machine adopts new electronic jacquard and computerized embroidery programming system which is intuitive, shortcut and easy operate.
2. Electromagnetic valve and its drive boarda in separated, which is easy to maintenance. The Electronagnetic valve mold group is sealed with composite materials and only needs small amount of energy, and does not require maintenance. To achieve the high speed running necessary for manfacturing, two steel bead bearings sahre the load. Fast connector is used between the bearing and jacquard rope group, as contributes to easy dismantlement.
3. Head transmission belt and bearing are imported from Italy and Japan. And the jacqurd rope and plam fibre rubber are originally from Swiss and the quality is guaranteed. The reasonable and precise transmission design ensures high speed running of machine.
4. The opening of machine body shedding frame works with head and there types of head opening with various width to suit weaving requirements. The design is precise, and commissioning becomes simple and easy.
5. Electromagnetic valve lifting tool and transmission belt adopt double double external mode. The lifting tool and belt are connected in bevel pressing mode, which does not damagw the belt and makes more reasonable structure.
Technical Specifications
Model (S/M)
No. of Belt (piece)
Reed Width (mm)
No. of Frame (fin)
Chain link Repeat (pin)
Speed (T/M)
8/35/192 S
8
35
8(10)
8-48
750-850
8/30/128 S
8
30
8(10)
8-48
850-1000
6/45/128 S
6
45
8(10)
8-48
850-1000
6/55/128 S
6
55
8(10)
8-48
850-1000
4/65/160 S
4
65
8(10)
8-48
850-1000
6/45/160 S
6
45
8(10)
8-48
850-1000
6/55/160 S
6
55
8(10)
8-48
850-1000
4/65/192 S(M)
4
65
8(10)
8-48
850-1000
6/45/192 S(M)
6
45
8(10)
8-48
850-1000
6/55/192 S(M)
6
55
8(10)
8-48
850-1000
4/65/256 S
4
65
8(10)
8-48
750-850
6/55/256 S
6
55
8(10)
8-48
750-850
4/65/320 S
4
65
8(10)
8-48
750-850
6/55/320 S
6
55
8(10)
8-48
750-850
4/65/384 S
4
65
8(10)
8-48
750-850
6/55/384 S
6
55
8(10)
8-48
750-850
4/65/512 S
4
65
8(10)
8-48
750-850
Details Images
Synchronous Belt Feeding
Link Driven
Product Usage





Purpose:
Flexible or non-flexible narrow fabric and cloth with jacquard effect of various patterns, characters , symbols and etc.
Related Products
Packing&Shipping
1. If order is big, we will advise you use Sea Shipping through your nominated forwarder agent. Our long-term cooperated agent also available.
2. If ship by FCL then we packed by wooden plate.If ship by LCL we will pack the machine by wooden box.
Company Introduction
Guang Mei Precision Machinery Co., Ltd is specialized in manufacturing weaving machineries like Narrow Fabric Needle Loom, High Speed Needle Loom, Computerized Jacquard Loom, High Speed Zipper Needle Loom,Warping Machine, High Speed Braiding Machine, Crochet
Machine, lroning machine and Narrow Fabric Packing Machine since 1998.we can offer you all equipment for narrow fabric solutions.
The company has strong production capability and owns imported advanced processing devices, including CNC milling machine centers, various types of lathes with high precision, granding machines, punches, planer type milling machine and welding machines and
testing instruments. The annual production output of weaving machines is over 3000 units.

Our Services & Strength :

Our MOQ is 1 set, we can offer you high quality, reasonable price and good after sale services. The warranty of our products is one year. We will provide you with satisfactory after-sales service, like free spare parts, video technical support and online support.
FAQ
Q1. If you can supply all equipment for narrow fabric weaving industry?
A: Yes,and we also can offer customerized service,our enginners are in this line over 20 years.

Q2.What kind of narrow fabric tape your machine can make?
A: Our machine can set many kinds of narrow fabric such as PP tape, cotton tape, seat belt,h eavy duty belt, curtain tape, satin ribbon, sofa elastic, underwear elastic, shoeslaces, bra laces, face mask ealstic and ect.

Q3.Do you accept OEM or ODM order?
A: Yes, we accept both OEM and ODM for customers.

Q4.What is the payment way?
A: TT, L/C, West Union, Online Bank Payment.

Should you have other questions,please let us know.We'll add answers here for your further references.Thank you.
